Product Details

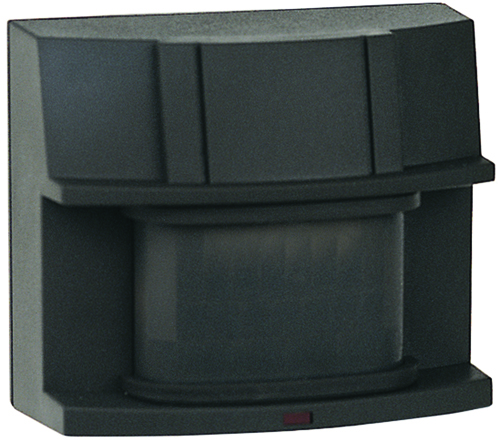

Replacement motion sensor for security lights, requires 120 VAC, 60 Hz. Test, auto and manual operating modes. For manual mode, the control must be wired through a switch. Turns on lighting when motion is detected. Automatically turns lighting off with time delay of 1, 5 or 10 mins. Photocell keeps the lighting off during daylight hrs. LED indicates motion was sensed (day or night). Resets to auto mode at dawn. Adjustable range up to 70 ft, varies with surrounding temperature. Sensing angle up to 180 deg. Electrical load up to 500 W maximum incandescent.
