Product Details

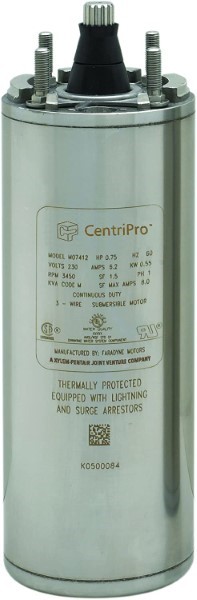

Goulds M20412 CentriPro 4" Motor Generation 1 Series Three-Wire Motor

This copper wound 4" submersible motor is designed and sized for the installation in 4 inch diameter or larger water wells. This three wire motor has a capacitor start induction run design and requires a control box with a starting relay and capacitor.

Features

Stainless steel casing and upper and lower end bells
Three-shoe Kingsbury thrust bearing
Stainless steel, 17-4 PH splined shaft
Removable, replaceable 48 inch motor lead held in place by (2) screws for controlled compression
Built-in check valve allows well water to enter motor as needed
Surge arrestors built-in
CSA Certified, tested to ANSI/NSF 61
NEMA Mounting Dimensions
Please note that this 3-wire motor requires a control box

Control Panel Options

Below are Goulds control panels that can be used with this motor:
CB20412CR
CB20412MC

Specifications:

Brand: Goulds
Mfg. Number: M20412
Product Type: Motor
Application: Water systems
Horsepower: 2 HP
Voltage: 230 Volts
Phase: 1
Power: 1.5 kW
Frequency: 60 Hz
Service Factor: 1.25
Locked Rotor Amps: 49
Main Winding Resistance: 1.6-2.2 Ohms
Start Winding Resistance: 4.8-5.9 Ohms
Thrust Rating: 900
Rotation: Counterclockwise
Standard Control Box: CB20412CR
Deluxe Control Box ( Mag Contactor): CB20412MC
Design: Water lubricated
Construction Material: 304 Stainless steel construction
Shaft Material: 17-4 PH splined stainless steel
Motor Type: 3 Wire
Max Water Temperature: 86?F
Length: 15.1"
