Product Details

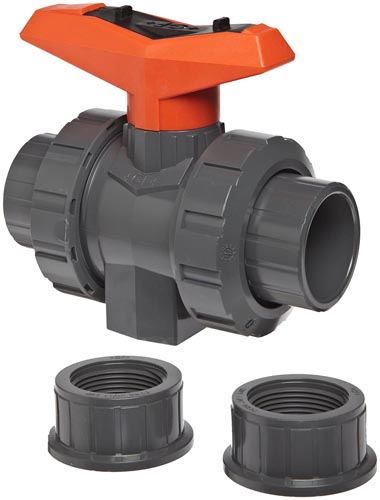

The GF Piping Systems type 375 two-piece ball valve has a PVC (polyvinyl chloride) body that weighs less than valves made from metals, and it has EPDM (ethylene propylene diene monomer) O-rings for good resistance to weathering, ozone, UV, electricity, oils, water, steam, and some solvents. The PTFE (polytetrafluoroethylene) seat resists chemicals, moisture, and high temperatures. This valve connects two pipes going in the same direction and has true union connections that allow in-place valve replacement. It has a full port for reduced friction; the inner diameter of the valve is the same as the inner diameter of the pipes it connects to enable maximum operating efficiency. This valve includes socket weld connections with an internal recess on each inside diameter to allow for a smooth bore and better fluid flow. Valves in sizes 3/8" through 2" also include National Pipe Taper (NPT) threaded connections, which create tighter seals than straight threads. It is pressure rated to 232 pounds per square inch (psi) at 72 degrees Fahrenheit (F) using the socket connections and is pressure rated to 150 psi at 72 degrees F using the NPT threaded connections.

Specifications
