Product Details

This patented line of tools with snap-in sensor detects AC voltage without contacting live wires.
PRODUCT DESCRIPTION

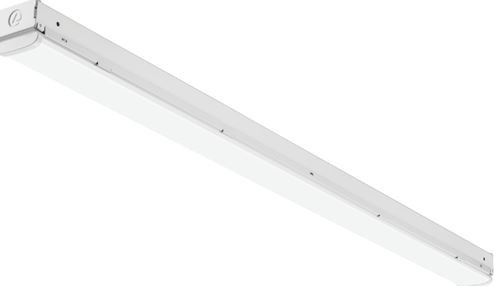

The light-duty, dimmable, damp-location and DLC listed CSS LED strip light can easily mount individually to a ceiling, horizontal and vertical wall, or by continuous row/daisy chaining. The size and versatility makes it suitable for tight spaces, task lighting, restrooms, under/over cabinet and storage closets.

PRODUCT SPECIFICATIONS
INTENDED USE: Inspired by classic fluorescent strip channels, this LED fixture offers a traditional appearance that incorporates the latest technology. Available in several color temperatures, lumen packages and lengths. Ideal for use in commercial, retail, office, warehouse and display applications. Certain airborne contaminants can diminish integrity of acrylic. Click here for Acrylic Environmental Compatibility table for suitable uses. Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.

CONSTRUCTION: Compact-design channel and cover are formed from code-gauge, cold-rolled steel. Easy to install row aligner bracket included for continuous row mounting. Finish: High-gloss, baked white enamel (standard).

OPTICS: LEDs provide 80+ color rendering index (CRI) at 3500 K, 4000 K and 5000 K. Diffuse acrylic lens provides smooth, linear illumination. Lumen output exceeds 1,000 lumens per foot. ELECTRICAL: Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. For applications requiring higher level of protection additional surge protection must be provided.
INSTALLATION: Fixture may be surface or suspension mounted with appropriate mounting options (see accessories). Aligner locks in place for easy continuous row mounting.

LISTINGS: CSA certified to US and Canadian safety standards and listed suitable for damp locations. Minimum starting temperature at -40 degree F (-40 degree C). Maximum ambient operating temperature of 95 degree F (35 degree C). DesignLights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.

Specifications
