Product Details

Frigidaire(R) Fit Promise Frigidaire(R) Fit Promise We promise that your new 30" or 36" Frigidaire Gallery(R) brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.

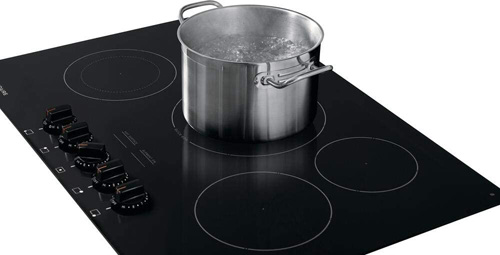

Frigidaire Gallery 30'' Electric Cooktop
PRODUCT DIMENSIONS
Height 2-5/8"
Width 30-5/8"
Depth 21-3/8"
MORE EASY-TO-USE FEATURES
Fits-More(TM) Cooktop The Fits-More(TM) cooktop features five elements - allowing you to cook more at once.
Get Cooking Faster with Quick Boil Our powerful 3,200 watt element allows you to boil water in less than three minutes1.
SpaceWise(R) Expandable Elements Flexible elements expand to your cooking needs.
Easy to Use Front Controls Controls located on the front of the cooktop allows you to adjust the temperature without reaching over hot items. Express-Select(R) Controls Easily go from warm to boil.
Ceramic Glass Cooktop For a more beautiful cooktop that's easy to clean.
Hot Surface Indicators Light on your cooktop informs you when the surface is hot.
CERTIFICATIONS
ADA Compliant ADA Logo
frigidaire.com/frigidaire.ca
FGEC3068UB Frigidaire Gallery 30'' Electric Cooktop

General Specifications
PROP 65 Label No
Shipping Weight (lbs) 35
Frigidaire Fit Promise Yes
Product Weight (lbs) 65
Power Type Electric
Size 30''
Installation Type Drop-In
Collection Frigidaire Gallery
Controls
Control Location Center front
Control Type Mechanical
Cooktop
Center Rear 9" - Quick Boil - 3200 Watts
Hot-Surface Indicator Light Yes
Right Rear 6" - 1200 Watts
Right Front 7" - 1800 Watts
Left Rear 6" - 1200 Watts
Left Front 5" to 7" - 750/1800 Watts
Cooking Surface Black Ceramic Glass
Cooktop Surface Type smooth surface
Installation Type
Oven Combo Approved Yes
Certifications & Approvals
Agency Approval(All Brands) UL/CSA
Sabbath Mode No
ADA Compliant - All Brands Yes
Dimensions: Cut-Out
Height 5"
Depth 19-5/8" - 20-1/2"
Width 28-1/2" - 29-7/8"
Electrical Specifications
Connection Location Right Rear
Min Circuit Required 40A
Voltage Rating 240V / 208V 60Hz
Amps @ 240 Volts 38.3 / 33.2
Connected Load @ 240V 9.2 / 6.9
Dimensions: Exterior
Width 30-5/8"
Height 2-5/8"
Depth 21-3/8"
