CAMCO 00243 Top Burner, 240 V, 1500 W, Plug
Deluxe burners offer more turns for greater heating surface. UL Listed, round, electric burners. 208/240 V. Economy 940/1250 W for No SP12YA Chromalox and 1575/2100 W for No SP21A Chromalox, Deluxe 1130/1500 W for No MP15YA Chromalox and 1575/2100 W for No MP21YA Chromalox.

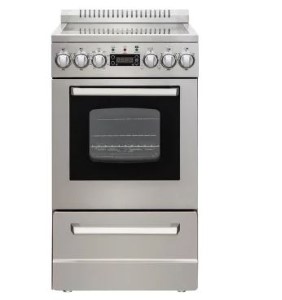

AVANTI 20" 2.1 cu. ft. Electric Range Stainless Steel
This Avanti 20 in. Electric Range Comes with a Backsplash and Storage Drawer. It features 4 coil burners, 2.1 cu. ft. capacity, deluxe see-thru glass oven door, oven cavity light, a backsplash and leveling legs.
Fuel Type: Electric
Cooktop: Coil
Elements: 4
Primary Oven Capacity: 2.1 cu. ft.
Drawer: Storage
220-Volts
Leveling Legs: Yes
Elements: 4
Frequency: 60 Hz
Amps: 15-20
Style: freestanding
No digital clock
Frigidaire 30" Freestanding Electric Range | Stainless Steel
he Frigidaire 30'' Electric Range allows you to get meals on the table faster with this 3,000W element that boils faster than the traditional setting. SpaceWise expandable elements expand to meet your cooking needs - big or small. with the Store-More storage drawer, you will have extra space to store your cookware.
Frigidaire 5.4 Cu. Ft. Electric Range with Self-Cleaning
General Specifications
Adjustable Leveling Legs: 4 Adjustable
Product Weight (lbs): 175
Power Type: Electric
Size: 30''
Installation Type: Free-Standing
Collection: Frigidaire
Oven Specifications
Oven 1 Cleaning System: Self-Clean
Oven 1 Interior Lighting: 1 Incandescent
Exterior Specifications
Control Panel Finish: Stainless Steel
Door Finish: Glass with Stainless Steel
Handle Color: Stainless Steel
Capacities
Total Capacity: 5.4
Certifications & Approvals
ADA Compliant: No
Agency Approval: UL
Sabbath Mode: No
Cooktop
Center Rear: Warming Zone - 100 Watts
Cooking Surface: Upswept Black Smoothtop
Element On Indicator Light: 1 Clear
Hot-Surface Indicator Light: 1 Clear
Knob Color: Color-Coordinated
Knob Type: Plastic
Left Front: 6" to 9" - 1400/3000 Watts
Left Rear: 6" - 1200 Watts
Right Front: 9" to 12" - 1800/3000 Watts
Right Rear: 6" - 1200 Watts
Cooktop Surface Type: smooth surface
Exterior
Cooktop Finish: Color-Coordinated Porcelain
Exterior Finish: Painted
Cooking Controls
Bake: Yes
Broil: Broil Variable (400 - 500?F)
Cancel: Yes
Clock: Yes
Delay Clean: Yes
Automatic Oven (Delay Cook & Off): Yes
Lockout: Yes
Lower Drawer Controls: Storage
Self-Clean: 2 3 Hours (Scroll thru)
Probe: No
Timed Bake: Yes
Timed Shut-off: 12 hours
Timer: Yes
Control Lock: Yes
Dimensions: Exterior
Height: 47-3/4"
Width: 29-7/8"
Depth: 28-13/32"
Electrical Specifications
Amps @ 240 Volts: 11.5 / 8.5
Minimum Circuit Required (Amps): 40A
Power Supply Connection Location: Rear Centerline Lower
Voltage Rating: 120V / 240V or 120V / 208V 60Hz
Oven
Bake: 3500 Watts
Baking System: Even Baking Technology
Broil: 3600 Watts
Broil System: Vari-Broil(TM) High/Low
Hidden Bake Element: Yes
Oven 1 Interior Depth: 19-1/8"
Oven 1 Interior Height: 19-3/4"
Oven 1 Interior Width: 24-3/8"
Oven 1 Rack Configuration: 2 Standard
Oven 1 Rack Positions: 6 positions
Oven 1 Type: Main
Oven 1 Window: Extra-Large Visualite(R)
Drawer
Drawer Functionality: Storage
Handle: Integrated
Accessories
Griddle: Optional
Frigidaire FFEH3054US 30" Slide-in Electric Range | Stainless Steel
Dimensions and Volume
Height: 36 5/8"
Width: 29 7/8"
Depth: 26 3/4"
Depth With Door 900 Open: 47"
Depth With Handle: 29 3/16"
Oven Interior Height: 18 5/8"
Oven Interior Width: 24 3/8"
Oven Interior Depth: 19 1/8"
Oven Capacity: 5 Cu. Ft.
Display
Control Location: Front
Display Type: Membrane
Cooktop Performance
Right Front Element Burner Size: 12"
Right Rear Element Burner Size: 6"
Left Front Element Burner Size (Small): 6"
Left Front Element Burner Size (Large): 9"
Left Rear Element Burner Size: 6"
Right Front Element Burner: 2,700 Watts
Right Rear Element Burner: 1,200 Watts
Left Front Element Burner (Small): 1,400 Watts
Left Front Element Burner (Large): 3,000 Watts
Left Rear Element Burner: 1,200 Watts
Keep Warm Burner Location: Center Rear
